NCM/NCA Cathode Production Line

01. Sedimentation Zone
02. Mixing Zone

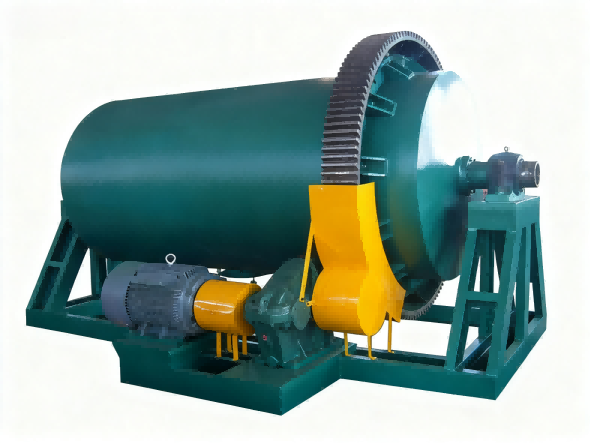

03. Ball Milling Zone
04. High-Temperature Sintering Zone
05. Primary Crushing Zone

06. Pulverization and Classification Zone
07. Carbon Coating Zone
08. Demagnetization Zone
09. Screening Zone
10. Packaging Zone

Solution Overview

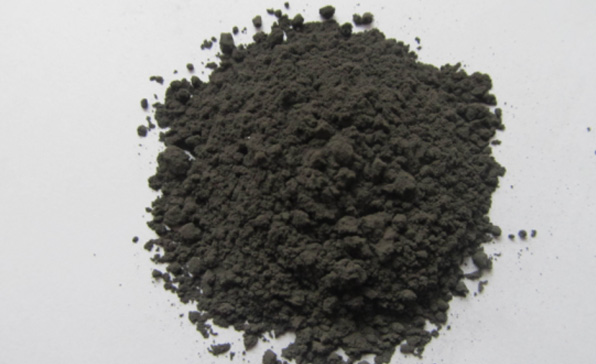

Ternary materials usually refer to nickel cobalt manganese oxide lithium（NCM） or nickel cobalt aluminum oxide lithium（NCA）, which are important categories of cathode materials for lithium batteries. With high energy density as the core advantage, they are widely used in EV(especially high-end models), consumer electronics and other fields. Its production line needs to be controlled through refined processes to convert various metal raw materials into composite oxide powders that meet battery performance requirements.

150-200
mAh

Capacity:
1000
times

Cycle:≥
2.0-2.8
g/cm³

Tap density:

Parameters

Parameter Name	Typical Value/Requirement	Test Method
Ni Content	NCM523: 50-55% NCM811: 80-85%	ICP-OES
Co Content	NCM523: 18-22% NCM811: 5-10%	ICP-OES
Mn/Al Content	NCM523: 25-28% NCA: Al 4-5%	ICP-OES
Li/(Ni+Co+Mn) molar ratio	1.00-1.05	ICP-OES
Moisture(H₂O)	≤ 500 ppm (high nickel series ≤ 200 ppm)	Karl Fischer method
Sulfate(SO₄²⁻)	≤ 100 ppm	Ion chromatography
Magnetic foreign body	≤ 30 ppb	Magnetic flux detector
Sodium (Na), Calcium (Ca)	≤ 100 ppm	ICP-MS
Median particle size (D50)	Single crystal:3-8μm Polycrystalline:8-15μm	Laser Particle Size Analyzer
Specific surface area (SSA)	Single crystal:0.3-0.8 m²/g Polycrystalline:10-20 m²/g	BET nitrogen adsorption method
Tap density	2.0-2.8 g/cm³	Vibrating density meter
Compaction density	3.3-3.8 g/cm³(Electrode pad)	Pressure tester
PH value	10.5-12.0	PH meter
