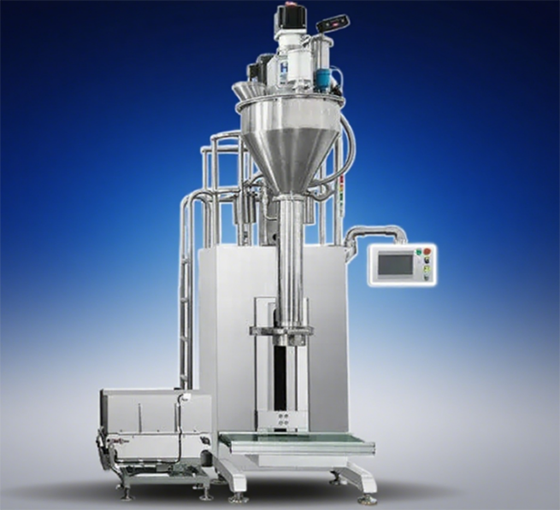

Small bag degassing packaging machine

The lithium iron phosphate small bag degassing packaging machine is a refined packaging equipment designed specifically for lithium battery positive electrode materials (such as lithium iron phosphate, ternary lithium, etc.), which solves the packaging problems of ultrafine powders caused by high gas content, easy dust, and poor fluidity. By integrating vacuum degassing, sealed filling, and precise measurement technology, material densification packaging is achieved, suitable for small bag sizes of 5-50kg, directly improving storage and transportation efficiency.

Quote Now

Product Highlights

Volume compression of 30%~40%

By vacuum degassing (vacuum degree -0.08MPa), the same packaging bag can hold more materials, reducing storage and transportation costs by more than 20%.

Weighing accuracy ± 0.1%

Imported weighing sensor combined with servo speed regulation, suitable for a flexible range of 5-50kg.

Dust control

Three-level filtration+negative pressure recovery system, dust recovery rate>99.9%, working environment meets ISO level 8 cleanliness standards.

Dynamic parameter adjustment

The touch screen adjusts the filling speed and degassing intensity in real-time, and supports formula storage and retrieval.

Anti blocking design

The mixing mechanism (with a power of 0.75kW) breaks down material bridges to ensure smooth material discharge

Product Parameters

Packaging scope(kg/bag)	Filling accuracy (%)	filling velocity (seconds per bag)	Degassing configuration (t/h)	Power (kW)
10~50	±0.1	80-90	Vacuum pump	7.45
