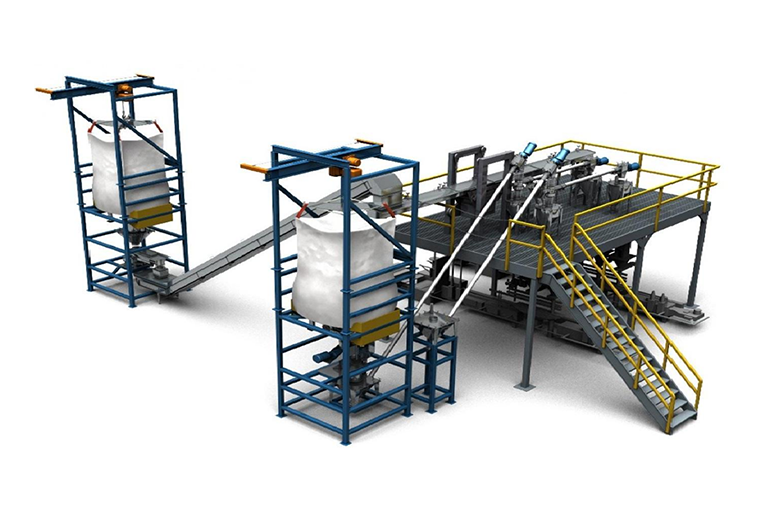

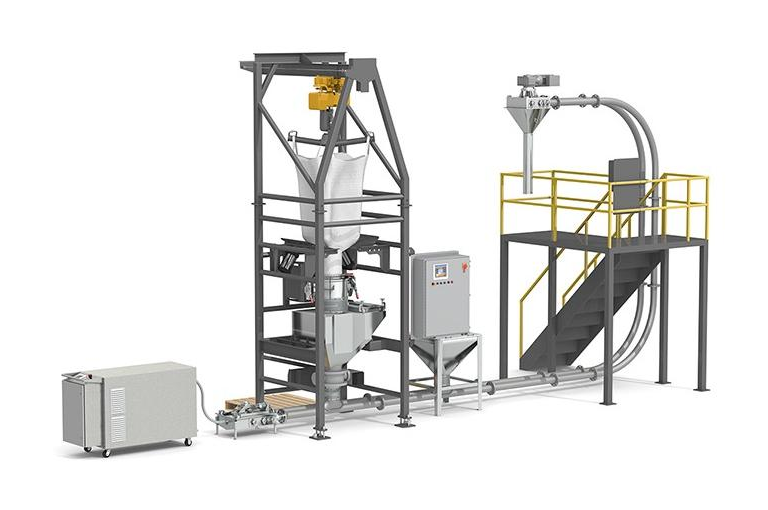

Ton Bag Unpacking Station
1.Suitable for unpacking and feeding materials in bulk bags(300-1000kg).2.The equipment is equipped with an auxiliary feeding device,dust filter,reverse air cleaning system,and more.3.The feeding process is safe and efficient,addressing dust and efficiency issues during material handling.4.It connects to downstream receiving hoppers,equipment,or conveying pipelines.
Product Parameters
| Overall Dimensions(L×W×H) | Continuous Unpacking Speed | Equipment Weight | Motor Power | Hydraulic System Flow | Hydraulic System Pressure | Control System | Human-Machine Interface(HMI) | Emptying Rate | Total Machine Power | Voltage | Air Pressure | Equipment Self-weight | Equipment Material |
| 10×2.2×5.65m | 20-60 bags/hour | 8000 Kg | 115 kW | 40 ml/min | 16 MPa | PLC | Siemens Touch Screen | Approximately 99.9% - 99.99% (depending on the fluidity of materials) | Approximately 19 kW | 380 V | 0.6 - 0.7 MPa | Approximately 4 tons | Carbon Steel/SS304 (determined based on material characteristics and requirements) |
