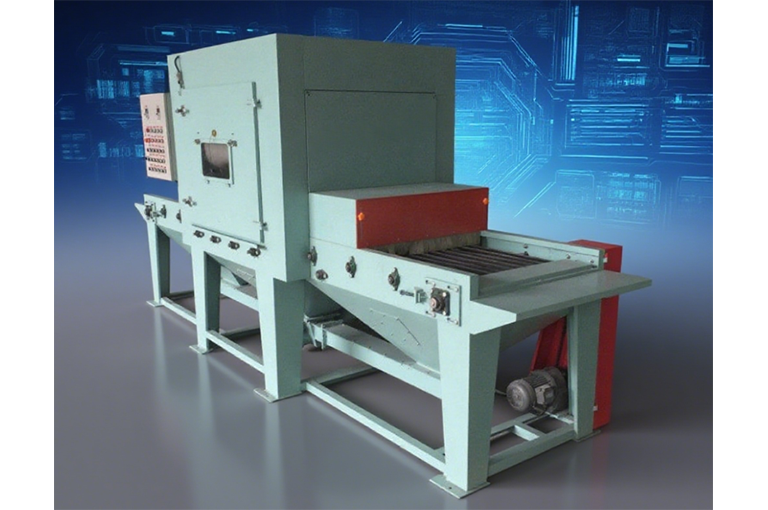

Sandblasting equipment

Silicon oxide surface sandblasting equipment is a precision device specifically designed for surface treatment of negative electrode materials (such as SiOx) in lithium-ion batteries. It removes surface oxide layers, impurities, and burrs through high-speed abrasive impact, improving material compaction density and coating adhesion.

Quote Now

Product Highlights

Dust free and environmentally friendly design

Adopting a three-level water circulation filtration+closed recovery system, the dust emission is less than 0.1 mg/m ³, far exceeding the EU explosion-proof standards, completely solving the problem of traditional sandblasting pollution, and complying with the requirements of the Air Pollution Prevention and Control Action Plan.

Recycling

Fully enclosed operation cabin+pneumatic recovery technology, residual material rate<1%, supporting 99% recycling of abrasives (such as ceramic sand and alumina).

Intelligent dynamic control

Siemens PLC controls the spray gun pressure (0.2-0.6 MPa) and abrasive flow rate (0-30 kg/min) to ensure that the uniformity deviation of SiOx particle surface treatment is less than 5%.

Efficient continuous production

The rotary table model supports synchronous operation at 40 workstations, with a processing efficiency of 8-25 m ²/h (depending on the process level), saving 35% energy compared to traditional equipment.

Product Parameters

Processing power(workstations/batch)	Work pressure(MPa)	Air consumption(m³/min)	Applicable abrasives	Processing efficiency(m²/h)
40	0.2–0.8	12	Ceramic sand/alumina	8
