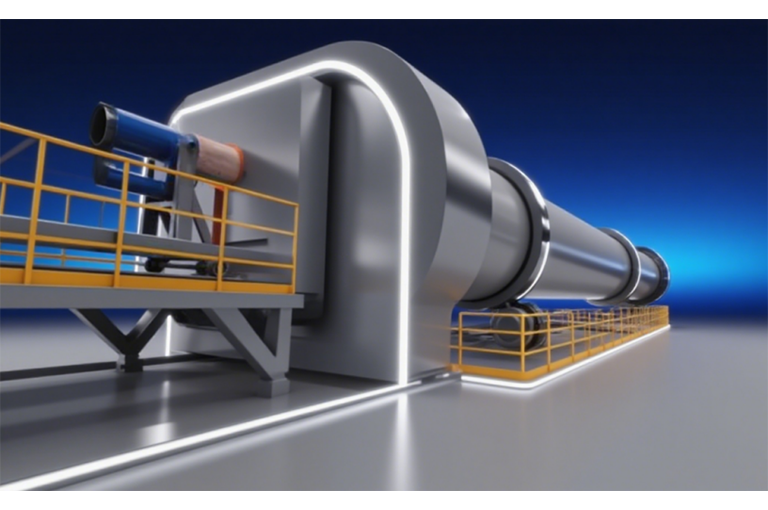

Rotary kiln

The lithium carbonate rotary kiln is the core thermal equipment in the production of lithium carbonate, mainly used for drying, dehydration, and high-temperature calcination. It is suitable for the strict requirements of purity, energy consumption, and continuous production of battery grade lithium carbonate.

Quote Now

Product Highlights

Anti metal pollution design

316L stainless steel cylinder body+ceramic coating lining, metal impurities control<50ppm, meeting the ppb level standard for battery materials.

Energy saving and insulation technology

Full fiber lightweight refractory layer (thermal conductivity ≤ 0.12 W/m · K), which reduces weight by 70% compared to traditional brick lining and reduces heat dissipation loss by 40%.

Zero dust leakage

Closed operation+negative pressure suction system, dust escape rate<1mg/m ³, lithium dust recovery rate>95%.

Predictive maintenance

Real time monitoring of bearing temperature and vibration, with an accuracy rate of fault warning greater than 95%.

Drying roasting integrated

Some models (such as the Bangshida BJXG series) support switching between drying and sintering modes, covering the entire process chain of lithium carbonate.

Flexible atmosphere control

Pre vacuum+inert gas injection, compatible with oxidizing, neutral, and reducing atmospheres, suitable for sintering ternary materials.

Product Parameters

Atmosphere control	Cylinder size (m)	Rated temperature (℃)	Power (kW)	Processing power (t/h)	temperature control accuracy (℃)
Gas flame+combustion air	∅3.3–3.6×55	1000	300–500	15–30	±5
