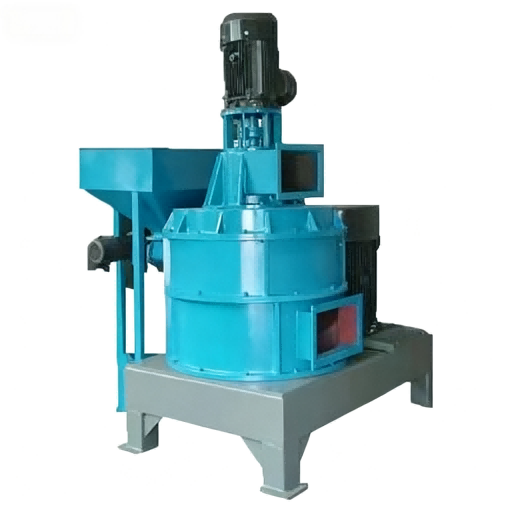

Graphite shaping machine

The artificial graphite shaping machine is a key equipment in the production of lithium battery negative electrode materials, mainly used for spheroidizing graphite particles, removing edges and corners through mechanical friction and collision, improving vibration density and flowability, and optimizing battery fast charging performance and cycle life.

Quote Now

Product Highlights

Enhancement of sphericity rate

After 10 minutes of FNZ series treatment, the compacted density reached 1.2g/ml, equivalent to the effect of traditional equipment for 30 minutes, and the production capacity increased by 50%.

Reduce energy consumption by 30%

Multi force field synergy (centrifugal+impact+extrusion), with a power consumption of ≤ 25kW · h per ton of material.

Zero metal pollution

The contact surface is made of 316L stainless steel or ceramic lining plate, with a magnetic impurity increment of ≤ 15ppb.

Anti blocking design

Hydraulic flipping structure+self-cleaning scraper, residual rate<0.1%, continuous operation>120 hours.

Particle size online adjustable

SG shaping machine supports real-time adjustment of D50=5-50 μ m, suitable for multiple specifications of products.

Predictive maintenance

Bearing temperature vibration monitoring and warning faults, accuracy>95%

Product Parameters

Processing Power (kg/h)	Finished Particle Size (μm)	Power Configuration(kW)	Speed Range	Collection Rate (%)
120~500	D50=5~300	Host 55~75+graded 11	High speed variable frequency rotor	＞80
