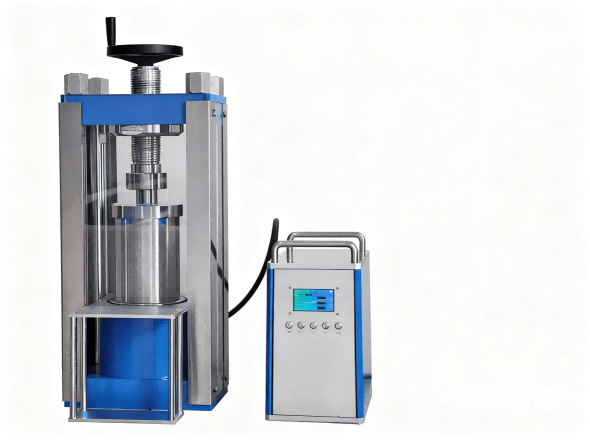

Cold isostatic press

LLZTO cold isostatic press is an ultra-high pressure forming equipment designed specifically for solid electrolyte materials. Through liquid medium pressure technology, it achieves uniform densification of powder materials at room temperature, forming high-density, low defect blanks.

Quote Now

Product Highlights

Multi stage boosting technology

The bidirectional reciprocating booster achieves stepless pressure adjustment, with a boosting rate of ≤ 8min, a pressure drop of ≤ 5MPa during the holding period, and automatic pressure replenishment.

Intelligent pressure relief system

The pressure relief rate is continuously adjustable, breaking the traditional drawbacks of fast high-pressure areas and slow low-pressure areas, and reducing the cracking rate of the billet by 50%.

Pre stressed steel wire winding frame

The high-pressure chamber, booster chamber, and frame use steel wire winding technology, which increases fatigue strength by three times and has a service life of more than 200000 times, far exceeding traditional laminated structures.

Fast cycle operation

Fully automatic working cycle ≤ 4 minutes/time (holding pressure for 10 seconds), with an efficiency increase of 40% compared to traditional equipment.

Dual medium energy-saving design

Oil/water isolation operation reduces energy consumption by 30%, and the recovery rate of working fluid is>95%.

Product Parameters

Working cylinder size(mm)	Rated pressure(MPa)	Boosting speed	Pressure holding accuracy(MPa)	Power configuration(kW)
Φ500×1200	250	0→250 MPa ≤8 min	Pressure drop ≤ 5	Host 22
