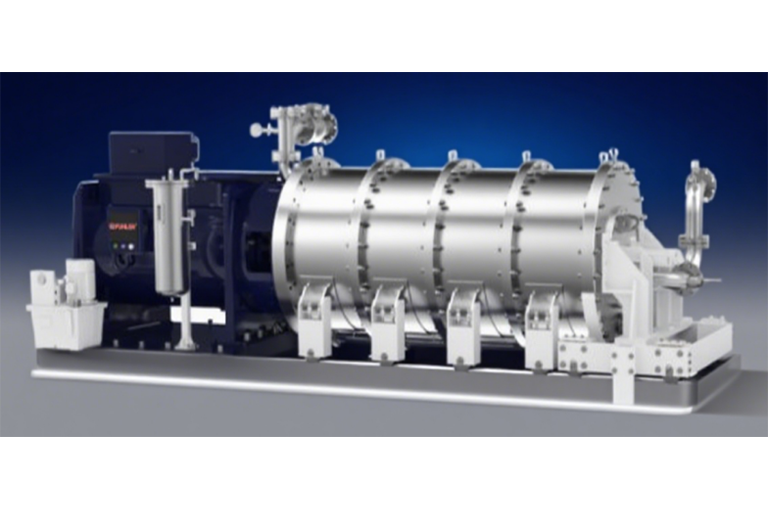

Agitator Nano Bead Mill

The Lithium Iron Phosphate (LFP) Agitator Bead Mill is a core piece of equipment in the preparation of lithium battery cathode materials. It is primarily used for nanoscale grinding and homogeneous mixing, ensuring that the LFP powder achieves a narrow particle size distribution and high consistency. This, in turn, enhances the battery's energy density and cycle life.

Quote Now

Product Highlights

Cyclonic Priority Grinding

Coarse particles undergo prolonged retention, while fine particles pass through rapidly, resulting in a 40% reduction in particle size distribution width. Battery-grade lithium iron phosphate achieves a particle size of 0.3 μm, enhancing battery storage capacity.

High Loading Rate

Horizontal-type machines achieve a loading coefficient of 65%~70%, increasing production capacity by 30%.

Zero Metallic Contamination

Ceramic lining + tungsten carbide stirring arms ensure magnetic impurity increment ≤15 ppb, meeting battery-grade standards.

Fully Sealed Design

Inert gas protection + floating shaft seal prevents solvent evaporation and material oxidation.

Precise Temperature Control

80% of slurry residence time occurs in the pre-mixing tank, improving cooling efficiency and preventing high-temperature agglomeration.

Product Parameters

Processing Capacity	Grinding Fineness	Grinding Fineness	Rotational Speed	Material / Contamination Prevention
Continuous Flow: 300 L/h	Grinding Fineness	45 kW	Rotor ≥1200 rpm	All-Ceramic Construction
